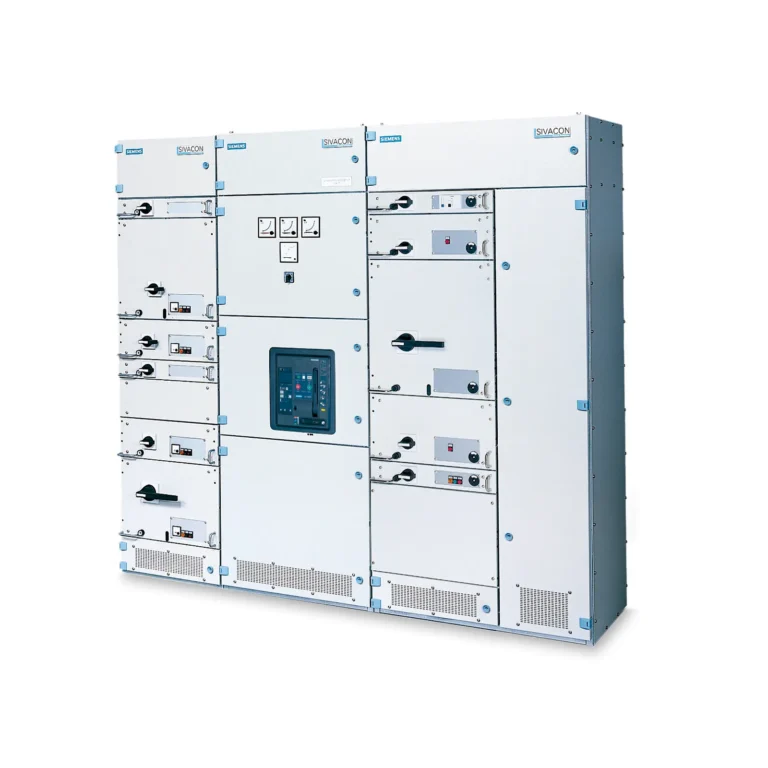

SIVACON 8PT Series
Low-Voltage Switchgear Assembly
| Applicable standard | IEC 61439-1 / IEC 61439-2 (equivalent to GB/T 7251.2-2023) |
| Rated operational voltage (Ue) | AC 400 V |
| Rated current (In) | 4000 A |
| Short-circuit withstand |
Icw: 80 kA, 1 s Ipk: 176 kA |
| Degree of protection | IP40 (IP54 optional) |
| Rated frequency | 50/60 Hz |
| Rated short-circuit breaking current (Icu/Ics) | 80/80 kA |
| Rated insulation voltage (Ui) | 690 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Overvoltage category | Category IV |
| Internal separation form | Form 3a |
| Protection against electric shock | Class I |
| Pollution degree | Pollution Degree 3 |
| Material group | IIIa |
| Minimum electrical clearance | 10.0 mm |
| Minimum creepage distance | 12.5 mm |
Product Overview:
SIVACON 8PT Low-Voltage Switchgear Assembly is a modular and high-performance low-voltage switchgear system developed by Siemens, designed to meet the requirements of modern power distribution systems in industrial, commercial, and infrastructure applications. The system is supplied and integrated by RKP Dreams as an authorized partner and system integrator, delivering standardized and reliable LV power distribution solutions.
SIVACON 8PT features a flexible modular architecture that supports a wide range of current ratings and functional configurations, including power distribution, motor control, and feeder applications. The system is designed in accordance with IEC 61439-1 and IEC 61439-2, ensuring high levels of operational safety, reliability, and international applicability.
With its robust mechanical structure, proven Siemens components, and configurable functional units, SIVACON 8PT provides a scalable platform that supports integration with monitoring, communication, and energy management systems through optional devices. Solutions delivered by RKP Dreams are suitable for industrial plants, commercial buildings, data centers, and infrastructure projects, offering a safe, efficient, and future-ready low-voltage switchgear solution.
Standards Compliance
SIVACON 8PT Low-Voltage Switchgear Assembly, supplied and integrated by RKP Dreams as an authorized partner and system integrator, is designed and verified in accordance with IEC 61439-1 and IEC 61439-2, which are equivalent to GB/T 7251.1 and GB/T 7251.2-2023, ensuring compliance with international requirements for low-voltage switchgear and controlgear assemblies.
Product Features:
- IEC 61439–Compliant Design
Designed and verified in accordance with IEC 61439-1 and IEC 61439-2, ensuring a high level of safety, reliability, and international acceptance. - Modular and Scalable System Architecture
Flexible modular design supports a wide range of current ratings, functional units, and application requirements, allowing easy expansion and configuration. - High Short-Circuit Withstand Capability
Robust busbar and enclosure design provides high short-time and peak withstand current ratings, suitable for demanding industrial and infrastructure applications. - Flexible Functional Unit Configuration
Supports power distribution, feeder, and motor control applications using standardized Siemens functional units and proven components. - Intelligence-Ready Integration
Designed to support monitoring, communication, and energy management functions through optional measuring and communication devices, enabling integration with SCADA and energy management systems. - High Operational Safety
Multiple internal separation forms, standardized safety concepts, and reliable interlocking mechanisms ensure safe operation and maintenance. - Proven Siemens Components
Utilizes Siemens circuit breakers and accessories, providing long service life, consistent performance, and global service support. - Wide Application Coverage
Suitable for industrial plants, commercial buildings, data centers, utilities, and infrastructure projects requiring reliable and scalable low-voltage power distribution.
Operating Conditions
- Ambient temperature
- Maximum: +40 °C
- Minimum: −5 °C
- 24-hour average: ≤ +35 °C
- Relative humidity
- ≤ 50% at +40 °C
- ≤ 90% at +20 °C
(Condensation shall be prevented)
- Altitude
- ≤ 2000 m above sea level
(Derating or special design required above this altitude)
- ≤ 2000 m above sea level
- Installation environment
- Indoor installation
Free from severe vibration, corrosive gases, and conductive dust
- Indoor installation
