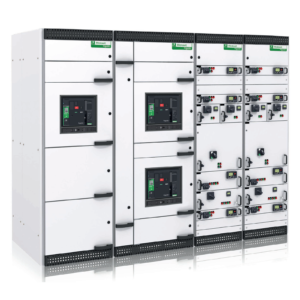

BlokSeT
Pre-Intelligent Low-Voltage Switchgear Assembly
IEC 61439-8 (equivalent to GB/T 7251.8-2020)
Ipk: 63 / 176 / 220 kA
| Rated frequency | 50/60 Hz |
| Rated short-circuit breaking current (Icu/Ics) | 50/50; 85/85; 100/100 kA |
| Rated insulation voltage (Ui) |
1000 V (incoming & feeder cabinets) 800 V (control cabinet) |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Overvoltage category | Category IV |
| Internal separation form | Form 1 |
| Protection against electric shock | Class I |
| Pollution degree | Pollution Degree 3 |
| Material group | IIIa |
| Minimum electrical clearance | 14 mm |
| Minimum creepage distance | 16 mm |
Product Overview:
BlokSeT Pre-Intelligent Low-Voltage Switchgear Assembly is a modular, intelligence-ready low-voltage switchgear system based on Schneider Electric’s BlokSeT platform, supplied and integrated by RKP Dreams as an authorized agent and system integrator. It is designed to meet the requirements of modern power distribution and energy management systems, with a strong emphasis on high reliability, modular architecture, and future-ready intelligent capability.
The system provides an integrated platform for power distribution, monitoring, communication, energy management, and fault diagnosis, supporting centralized supervision and efficient operation through optional intelligent devices and systems. It is designed to support the standard “four remote” functions—remote control, remote adjustment, remote signaling, and remote measurement—enabling flexible data acquisition, analysis, and control according to project requirements.
With flexible configuration and scalable design, BlokSeT solutions delivered by RKP Dreams are suitable for industrial facilities, commercial buildings, and infrastructure projects, offering a safe, efficient, energy-efficient, and expandable low-voltage power distribution solution.
Standards Compliance
BlokSeT Pre-Intelligent Low-Voltage Switchgear Assembly, supplied and integrated by RKP Dreams as an authorized Schneider Electric agent, complies with IEC 61439-1 and IEC 61439-2 (equivalent to GB/T 7251.1 and GB/T 7251.2-2023), meeting the requirements for low-voltage switchgear and controlgear assemblies.
For PSC (power switchgear and controlgear) applications, BlokSeT Pre-Intelligent Low-Voltage Switchgear Assembly also complies with IEC 61439-8 (equivalent to GB/T 7251.8-2020), ensuring reliable and standardized performance for high-current power distribution systems.
Product Features:
- IEC 61439–Compliant Design
Designed and verified in accordance with IEC 61439-1 and IEC 61439-2 (equivalent to GB/T 7251.1 and GB/T 7251.2-2023), ensuring safety, reliability, and international applicability. - Pre-Intelligent, Intelligence-Ready Architecture
Provides an expandable platform that supports intelligent monitoring, communication, and energy management through optional intelligent devices and systems. - Modular and Scalable Construction
Modular structure allows flexible configuration and easy expansion, supporting a wide range of current ratings and application requirements. - High Reliability and Operational Safety
Robust mechanical design, standardized functional units, and proven components ensure stable long-term operation in industrial and commercial environments. - Support for “Four Remote” Functions
Designed to support remote control, remote adjustment, remote signaling, and remote measurement, enabling centralized supervision and efficient system management. - Flexible Integration Capability
Easily integrates with SCADA, BMS, and energy management systems for unified monitoring and control. - Wide Application Coverage
Suitable for industrial plants, commercial buildings, data centers, and infrastructure projects requiring reliable and future-ready low-voltage power distribution.
Operating Conditions
- Ambient temperature
- Maximum: +40 °C
- Minimum: −5 °C
- 24-hour average: ≤ +35 °C
- Relative humidity
- ≤ 50% at +40 °C
- ≤ 90% at +20 °C
(Condensation shall be prevented)
- Altitude
- ≤ 2000 m above sea level
(Derating or special design required above this altitude)
- ≤ 2000 m above sea level
- Installation environment
- Indoor installation
- Free from severe vibration, corrosive gases, and conductive dust
